Stabi R & DIY options


Stabi R is a very compact turntable made from a solid block of aluminium with an internal (built in) electronic power supply. Drive is provided through a DC motor and a proprietary, non flexible drive belt.

The main platter is a constrained sandwich design consisting of three layers ( aluminium – acrylic - aluminium) in order to minimise vibration and maximise the damping effect of the platter itself and that of the LP. The ruby ball minimises friction and noise within the thrust bearing and is supported on a special low noise compound material.
One of the crucial design features of the new Stabi R is an unsurpassed degree of versatility and flexibility with regard to multiple tonearm installations. It is possible to use up to 4 (four!) tonearms around the main platter.Further, a variety of colours and a wood finish are available as options.

Stabi R base  you could fit into your own DIY plinth. See for more details in Manual section below.










Spare parts:

STABI R BASE: arm holder, 9 o& 12 inch arm balcony for Kuzma arms- soon available for other arms
STABI R BASE: arm holder, 9 o& 12 inch arm balcony for Kuzma arms- soon available for other arms
STABI R right side arm wing
STABI R right side arm wing
Stabi R ( same for M)  blue belt.  D= 184 mm, folded 290 mm
Stabi R ( same for M) blue belt. D= 184 mm, folded 290 mm

Latest Reviews:

STEREOPHILE July 2019 Vol. 42/No. 7: Stabi R wood by Ken Micallef: https://www.stereophile.com/content/kuzma-stabi-r-turntable

Link to review: http://www.hifiplus.com/articles/kuzma-stabi-r-turntable/

HIFI + October 2018 # 164-UK: Stabi R review

HIFI+ DEC 2018 # 166- UK Turntable of the Year  AWARD 2018: Stabi R:




» See all other reviews

Product photos:

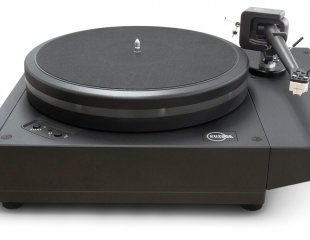

STABI R standard turntable with Stogi Ref tonearm and CAR 40 cartridge STABI R for two tonearms- silver RAL 9006 with Stogi Ref tonearm and CAR 40 cartridge STABI R BASE turntable- no arm wing STABI R 291 mm ( 12 inch cut) Kuzma armboard- rotate it for 180 deg for 9 inch cut STABI R 212 mm ( 9 inch cut)  Kuzma armboard-rotate it for 180 deg for 12 inch cut STABI R BASE - drive - for four arms STABI R with three different 4Point arms STABI R american walnut turntable STABI R  swiss pine-limba-( Pinus Cembra) turntable with Stogi S tonearm STABI R for two tonearms- black turntable with Stogi Ref tonearm and CAR 40 cartridge STABI R white RAL finish with 4 Point 9 tonearm and CAR 40 cartridge STABI R BASE with various arm options STABI R BASE with two arm holders STABI R two tonearms on two balconies- Sweden 2019- private WARSHAW 2018-BEST SOUND with ;Kuzma Stabi R+4P9 tonearm

Technical specifications
Mass 36 kg
Platter mass 8 kg
Platter material aluminium & acrylic
Bearing type inverted (ruby ball)
Shaft diameter 16 mm
Chassis/levelling aluminium / yes
Turntable levelling yes (4 adjustable feet)
Drive Single DC motor
Belt proprietary non flexible belt
Internal power supply yes (electronic)
Speeds 33, 45, (fine speed adjustment)
Armboard yes
VTA adjustment no (optional)
No. of tonearms 1 (+ up to 3 optional )
Suspension no
Dimensions 480 x 380 x 150 mm
Base only 320 x 380 x 150 mm ( 30 kg)
Wood version 500 x 465 x 150 mm ( 39 kg)
Finish black or silver ( RAL 9006 )
Record Clamp optional ( there is a mistake on brochure)
Platter Mat yes
Mains supply 115/230/50-60 Hz
Dust Cover no
Accessories supplied bearing oil, Allen keys
Options clamp, various pre-cut arm boards, RAL finishes,left sidearm wing, arm holder, arm balcony , side panel, wooden frame...

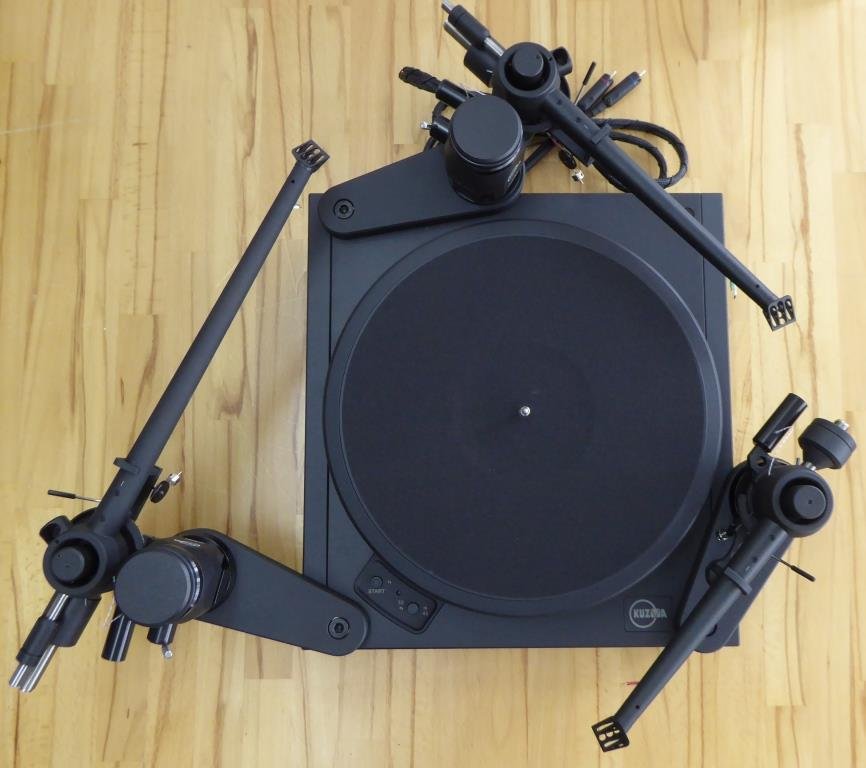

Multiple tonearm mounting options
If you mount three tonearms problem is that headshell of one arm might get to close to another arm either in rest or in play position!
Here are few suggestion using 3 arm holders mounting 4Point arms
RL- rear left, RR- rear right, FL- front left, FR-front right positions on Stabi R base
1. Option
4P14- RL
4P11- FL
4P9- FR
2.Option
4P11- RL
4P14- FL
4P9- FR
3.Option more careful positioning is required
4P9- RL
4P14-FL
4P11- RR
or
4P9- RL
4P11-FL
4P14-RR ( or arm balcony 12 inch)

BROCHURE STABI R 2019





IMSTABI R 180912

DIY: Infos for DIY plinth for Kuzma Stabi R base. There are drawings  for Stabi R base and Kuzma wooden frame which you can modify to your own ideas: Please send us photos of your own design featuring  Stabi R  base.

Stabi R base drawing

Wooden plinth drawing for Stabi R base

Stabi R arm balcony positions

Stabi R arm holder positions
