Stogi S 12


This is a 12 inch version of Stogi S  unipivot tonearm.

It is  a unipivot bearing design with a unique, rigid square headshell made from a solid aluminium block and a base of solid brass which control all vibration and facilitate stability of the tonearm as a whole. All parts of the arm are machined from blocks of solid metal, in order to provide damping and minimise resonance. The polished pivot point is sited in an oil well, which provides extremely low friction and bearing vibration. The bearing height is at record level for optimum tracking. The silicone damping controls resonance of the cartridge and also gives stability in azimuth direction.

Two counterweights allow easy adjustments of tracking force and azimuth. Fine azimuth adjustment is achieved by rotation of a horizontal screw in the main counterweight, which does not affect other tonearm parameters and which makes fine azimuth adjustment very simple.

Wires are in one uninterrupted piece from headshell to RCA phono connectors. By pre-order, wiring can also be fitted in for balanced ( XLR) connection.

Spare parts:

Stogi S 12&12VTA counterweights
Stogi S 12&12VTA counterweights
Lift-cueing device
Lift-cueing device

Product photos:

Two Stogi s 12 inch tonearms on Feickart tt Stogi S 12

Effective length 304,8 mm

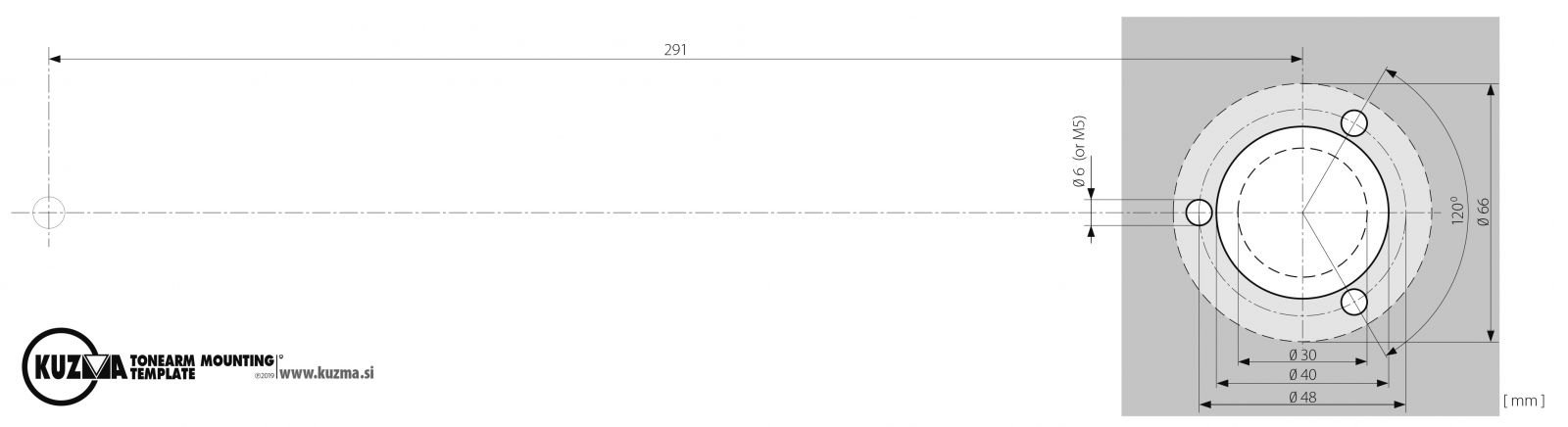

Arm mount distance 291 mm
Distance from spindle to horizontal bearing 291 mm
Bearing type Unipivot
Effective mass 12 g
Total mass 810 g
Offset angle 17,85*
VTA adjustment Yes
Azimuth adjustment Yes
Tube Straight
Bias Yes
Max. Standard cartridge weight 15 g
Optional light and heavy counterweight Yes
Damping Yes
Detachable headshell No
Arm mount Kuzma& Stogi
Standard wiring Copper, RCA Bullets ( 66pF )
Accessories protractors, Allen keys, cartridge mounting screws
Options XLR, 5pin
